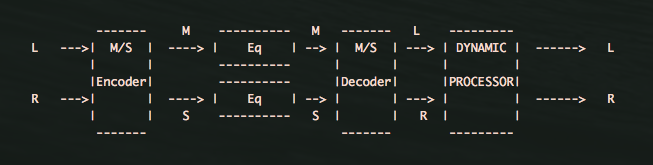

MS RECORDING (S1 MS Matrix(s) in Waves Plugins) .:.
- Encoding : Middle=1/2(Left+Right), Side=1/2(Left-Right)
- Decoding : Left=Middle+Side, Right=Middle-Side
Formula is :
This coincident technique employs a bidirectional microphone (with a Figure of 8 polar pattern) facing sideways and a cardioid (generally a variety of cardioid, although Alan Blumlein described the usage of an omnidirectional transducer in his original patent) facing the sound source. The capsules are stacked vertically and brought together as closely as possible, to minimize comb filtering caused by differences in arrival time.
The left and right channels are produced through a simple matrix: Left = Mid + Side, Right = Mid − Side ("minus" means you add the side signal with the polarity reversed). This configuration produces a completely mono-compatible signal and, if the Mid and Side signals are recorded (rather than the matrixed Left and Right), the stereo width (and with that, the perceived distance of the sound source) can be manipulated after the recording has taken place
